The applications for fine ropes and strands from Carl Stahl TECHNOCABLES are almost endless. The range of materials available and the different ways in which they can be constructed result in a wide variety of properties. Whatever the requirements of your application, whether corrosion protection or small dimensions, we will work with you to find the right wire rope or configured rope for your application.
We provide tailor-made solutions for a wide range of applications. We configure your wire rope for mechanical control cables, safety ropes / cables and suspension cables, as well as tension cables and ready-to-install bowden cables with electrical components. We offer custom made steel cables for medical industry, automotive custom stainless steel cable, customised rope solutions for furniture and industrial rope solutions.
Do you need a rope solution for your application or would you like advice?
We are manufacturer custom-made stainless steel cables for medical application.
The miniature cables produced by our cable factory are customised for medical technology and can be subjected to special processes required for medical technology, such as cleaning.

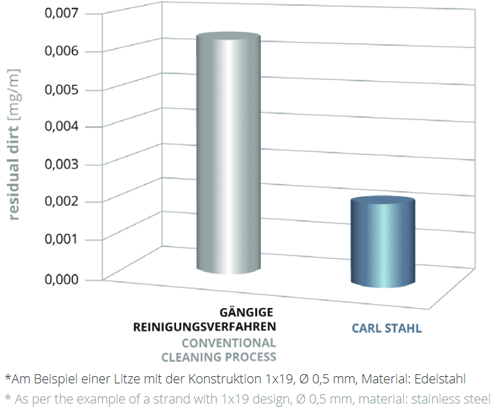

Independent laboratory tests show: The result of the cleaning process from Carl Stahl TECHNOCABLES is a significantly higher deep cleaning effect compared to conventional processes. Depending on design and diameter of the cables the percentage of the remaining dirt is reduced even multiple (cf chart).
Are you looking for an applicable partner in rope technology for medical applications?
We attend the medical challenges from our customers from the very first idea up to serial production according specification. Our specialists from the division research and development are always at your demand. Together with our customers we definie suitable materials, constructions, dimensions and minimum breaking load requirements. Clearly structured and safe processes have top priority.
In our product range you will find purified strands and steel ropes made of the materials 1.4401 (stainless steel) , 1.4310 (spring wire steel) and tungsten. We are happy to offer you other versions on request. Our ropes and strands are purified in a special deep cleaning program.
Product range purified ropes
You don't know which material is suitable for you?
Do you need biocompatible materials?
In our standard product programme, we offer strands with a 1 x 7 construction, compacted by hammering,
as well as swaged wire ropes in the constructions 6x7-WSC, 8x19+7x7 and 6x37-WSC.
These are made from stainless steel or tungsten wires.
Product range swaged strands and wire ropes
Further swaged srands / material and diamaeter are available on request.
Do you know the advantage of a smooth surface?
Do you need a high metallic cross section and higher breaking load in combination with small dimensions?
Contact us for further information.
Coated ropes are used in medical devices, among other things. Below you will find an extract from our current program. Please ask for further designs and dimensions.
Stainless steel AISI 316 | 6 x 7 - WSC, PA 12 coated
Stainless steel AISI 316 | 6 x 19 - WSC, PA 12 coated
Stainless steel AISI 304 | 6 x 7 - WSC, FEP coated
Stainless steel AISI 304 | 6 x 19 - WSC, FEP coated
Are you unsure in the chioce of the right coating material?
We offer special rope finishes.

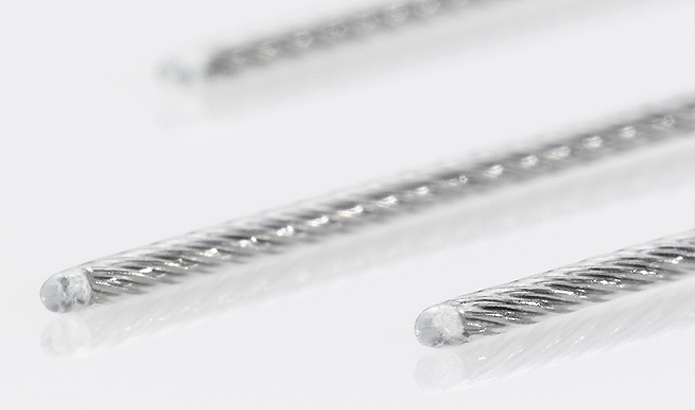

This picture shows a hemisphere formed from the cladding material.

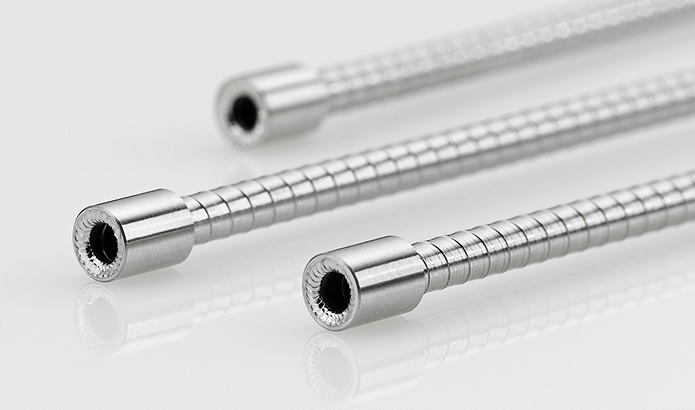

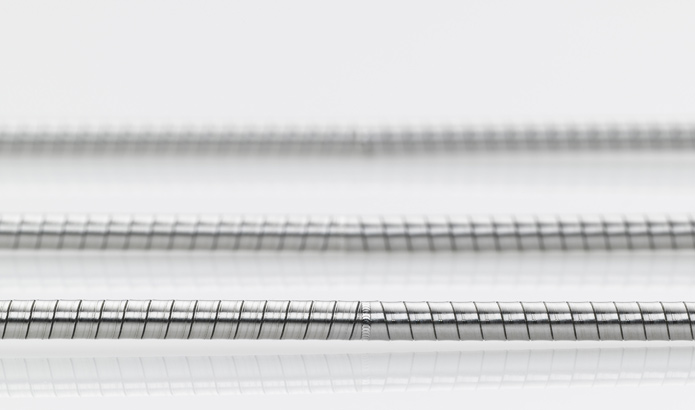

The pictures show a circumferential laser welded connection of a left and right hand flat wire spiral
We insert laserwelding technology as standard in our production.
Advantages of laser welding technology:
Material: 1.4401/AISI 316, tensile strength 1.770N/mm²
| Construction | Ø in mm | Min. break. load in N | Weight | old Item No. | new Item No. |
|---|---|---|---|---|---|
| 2x2 | 1,2 | 285 | 2,5 kg / 1.000 m | CG002120 | SE000338 |
| 2x2 | 0,22 | 17 | 0,097 kg/1.000m | CG002022 | on request |
Further dimensions on request.
Other lengths of lay according agreement.
Various other materials on request – e.g. copper, gold, silver, monel®, inconel®, hastelloy®, titanium®, incoloy®

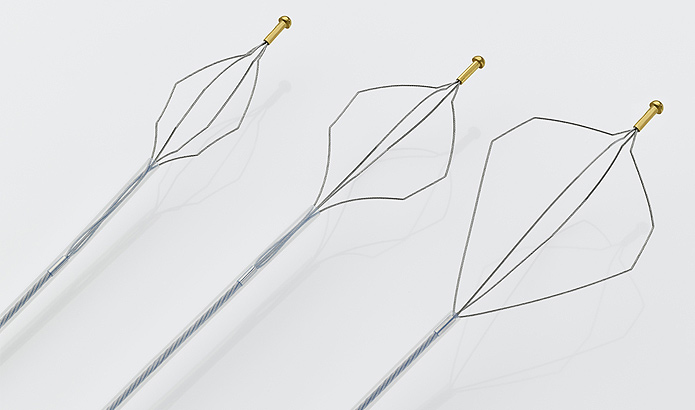

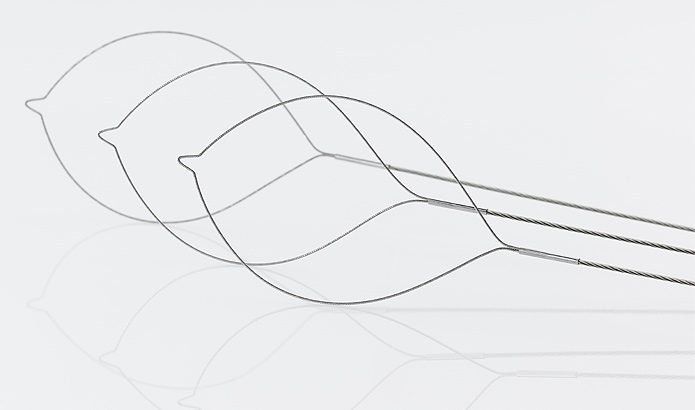

We produce strands and wire ropes for baskets, snares and components for the flexible endoscopy.

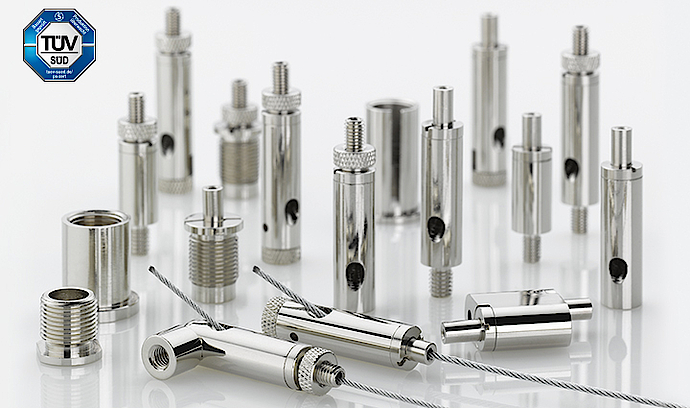

Professional wire suspension elements from Carl Stahl Technocables. Take advantage of our many years of experience in the field of rope technology.

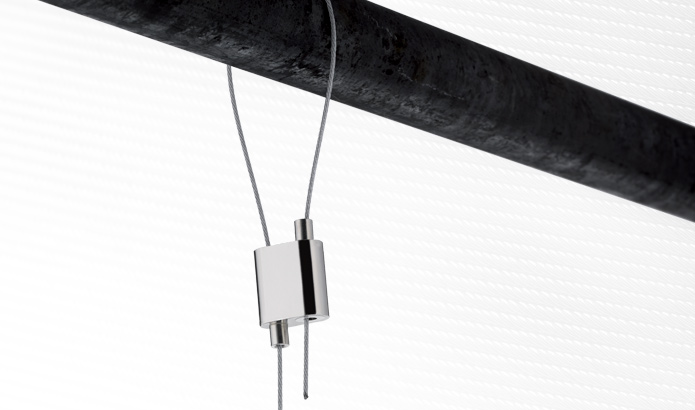

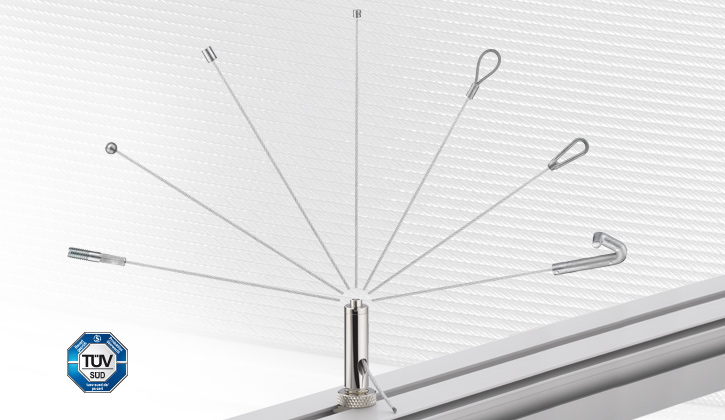

Wire ropes are used in the lighting industry for:
• Luminaire suspension wires
• wires for height adjustment suspension
• cable gripper
• Assemled suspension kids
Get an overview of our product range for the lighting industry:
We would be happy to develop individual products especially for your application.
Inspirational modern furniture requires sophisticated technology. With our Carl Stahl TECHNOCABLES, the invisible helpers for visible success, we want to convince you with efficient and high-quality rope systems. With passion, know-how and the spirit of development, our engineers and technicians are also looking for a suitable bowden cable solution for your application. A long working life of our gear ropes and safety ropes is a basic requirement.
Wire ropes are used in the furniture industry e.g. for:
• Height adjustable furniture
• Cable system for sliding doors
• Suspension ropes and pull-out safety ropes
• Ropes for lock control
• Bracing
• Wire ropes for furniture fitting
Innovative sun protection is getting more and more important due to changing environmental influences and sophisticated architecture. With our own product development we support this change with high quality cable products. With high bending cycles and UV-stabilized coated cables we provide the basis for an ambitious and long-lasting use.
Our steel cables are used in the following products:
Also in products like parasols and sun shades ropes and cables of Carl Stahl TECHNOCABLES are showing successfully their quality.
Carl Stahl TECHNOCABLES, the little helpers for relaxed and enjoyable gardening and landscape maintenance .
Our bowden cables and cable systems are used for example in:
• Positioning ropes
• Coupling ropes
• Bowden cable
Garden tools in which our products are used, for example:
chainsaws, brushcutters and lawn-mowers
Reliable, safe, innovative: this is how one describes the Carl Stahl TECHNOCABLES products. They are developed in our own R & D department. With our technical expertise, structured and safe processes as well as innovative engineering, we constantly complement our product range.

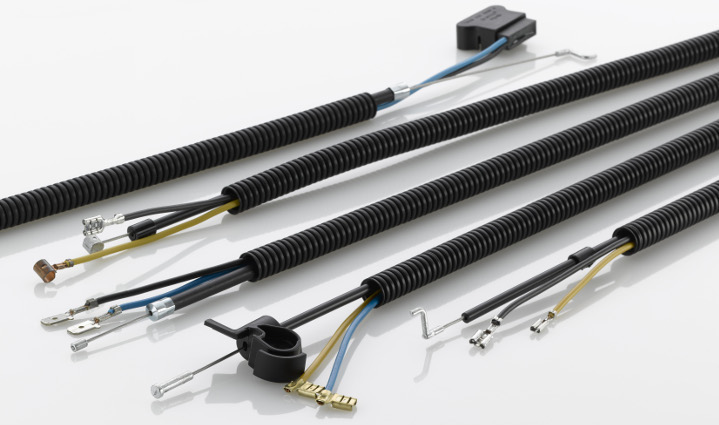

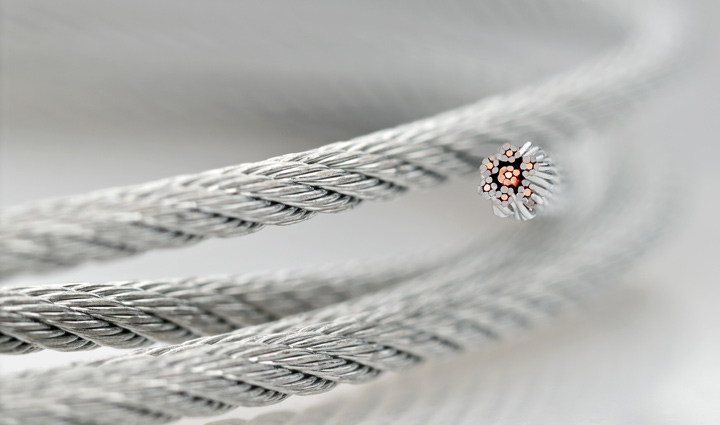

Your application requires a bowden cable with electrical cables? Our own electric cable assembly manufactures according to your requirements appropriate bowden cable solutions.
The Carl Stahl TECHNO CABLES team is always at your disposal.
Our cable solutions are manufactured specifically for the respective application in agricultural engineering. We can advise you on your tailor-made steel cable for agriculture .
Customised cable solutions
Assembled ropes, bowden cables and bulk wire ropes (plastic ropes can be made in different colors) are used in many areas of agricultural technology.
Examples of our ropes and cables in agricultural machines:
Application examples:
Tractors, mowers, forage & combine harvesters, balers, loading and discharge wagons, tillage equipment
Modern agricultural technique means technology combined with speed and efficiency. We develop together with you solutions for your special cable application.
We are an automotive steel cable manufacturer providing application specific cable solutions to the automotive industry. Custom stainless steel cables with end fittings for the automotive industry as well as galvanised steel cables. We also supply bowden cable / push-pull cable for automotive industry.
Automotive steel cable manufacturer
Automotive custom stainless steel cable / galvanised steel cable
High-quality wire ropes from Carl Stahl Technocables offer many advantages when used in the automotive sector, these are:
• Efficient
• Long-lasting
• High breaking load
• Flexible
• Elastic
Wire ropes are used in the automotive industry, for example, for:
• Safety belt adjustment
• Gear change rope
• Window lifting systems
• Car locks
• Mirror cables
• Bowden cables
• Engine restraint cables
• Winch cables
Get an overview of our products:
There are numerous other industries in which our products are used. We are manufacturers of custom made steel cables for industry. Our industrial rope solutions are always tailored to the specific application. We can help you find the right solution for your application.
