Carl Stahl Technocables

Wire rope, plastic coated wire rope by the meter

As a rope manufacturer and supplier of fine ropes in the range from 0.09 to 8.00 mm, we offer you an extensive range of wire ropes and wire strands by the meter or ready-to-install in various diameters and constructions.

Our wire ropes and wire strands are available in stainless steel, galvanized steel, tungsten, copper (current-carrying ropes e-rope) and special materials such as Nitinol. Coated wire ropes, ropes with fiber core or wire core, as well as swaged / compacted, purified or oiled wire ropes and wire strands are available to suit your application.

New innovative applications for wire ropes and wire strands are being discovered and used every day. More and more engineers and designers are taking advantage of the unique properties and possibilities of wire ropes and wire strands to solve tension, suspension, movement, switching and safety functions flexibly and safely. Our wire ropes are used in numerous areas.

rope factory micro wire ropes

High-quality metal ropes and strands from Carl Stahl Technocables

We can advise you on the selection of the right metal rope or strand for your application. Thanks to the wide range of options available, we can offer wire ropes for a wide variety of applications. All wire ropes and strands in our Carl Stahl Technocables range are made from drawn rope wires of high quality and tensile strength. Many years of experience and a continuous quality assurance chain from incoming goods to dispatch guarantee maximum reliability and quality. This makes us your reliable partner for rope applications in the fine rope sector.

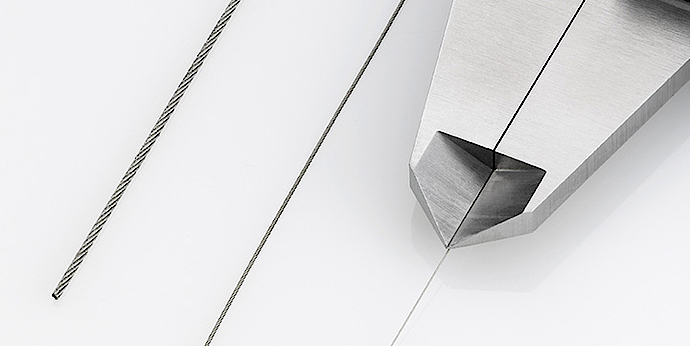

metal rope dimension
Dimension wire rope / wire strand

We supply ropes in the range from less than 1 mm to 8 mm. Fine ropes with small diameters are used in medical technology, among other things. Ropes with larger diameters are used in mechanical engineering or in the sun protection sector.

  • Strands 0.09 mm - 5.0 mm
  • Wire ropes 0.12 mm - 8.0 mm

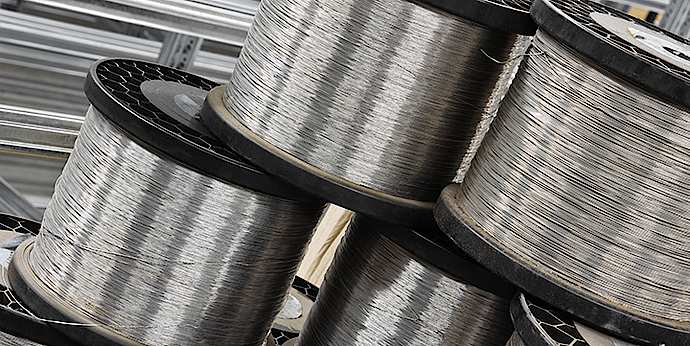

wire rope material
Wire rope / wire strand materials

The choice of suitable material depends on the area of application. In many cases, steel wire ropes are the most economical option. Ropes made of galvanized steel wire offer sufficient corrosion protection for many applications. For applications with a high corrosion potential, we recommend the use of stainless steel wire ropes.

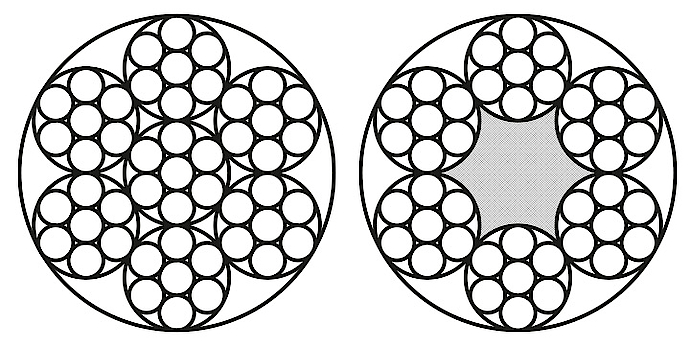

Construction wire rope
Construction wire rope / wire strand

Strands are produced by stranding individual wires and form the basis for further rope production. In this process, 3 to 37-strand strands are stranded. The higher the number of wires, the greater the flexibility of the wire rope and thus the bending fatigue strength. In a rope with a wire core, the core can be a strand or a rope. Wire ropes with a fiber core are also available.

  • Rope with wire core
  • Wire rope with fiber core
  • Wire strand
coated wie ropes

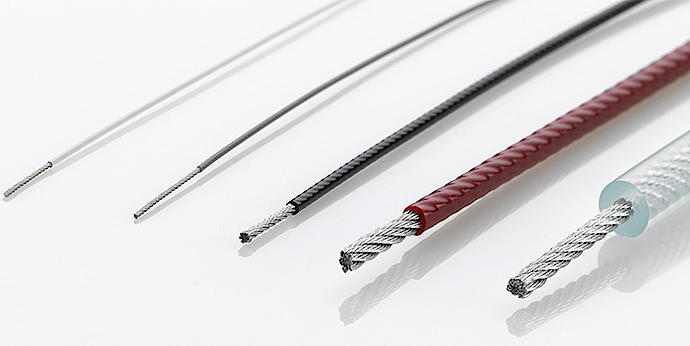

Surfaces of wire ropes / wire strands

Surface treatments can be individually tailored to the respective demands and customer application. Functional coatings can also be implemented on request.

  • Coated wire rope
  • Wire rope greased
  • Wire rope swaged
  • Wire rope purified

Product portfolio steel wire ropes, strands and special ropes

We fulfill individual customer requirements in the area of fine steel wire ropes and special constructions. As a manufacturer and supplier of steel wire ropes, we can offer an extensive product portfolio of steel wire ropes and steel strands and develop individual rope solutions for special requirements.

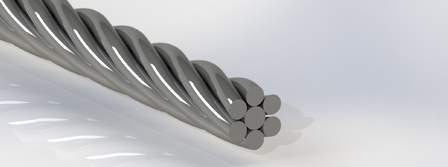

Strands
Strands

We are your supplier for strands made of stainless steel, galvanized steel and tungsten. You can obtain these from us in the following construction: strand 1x7, strand 1x12, strand 1x19.

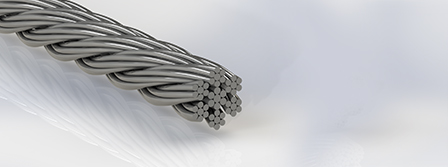

Wire ropes
Wire ropes

An extensive range of different wire ropes in terms of rope construction, available with fiber core, wire cable with wire core or plastic coated wire ropes.

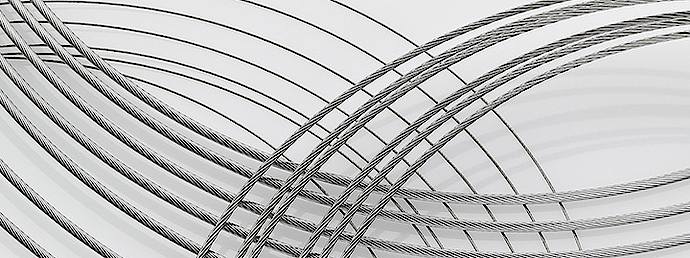

Special wires
Special wires

On request, our strands and ropes can be supplied with special treatments such as cleaned, swaged or greased.

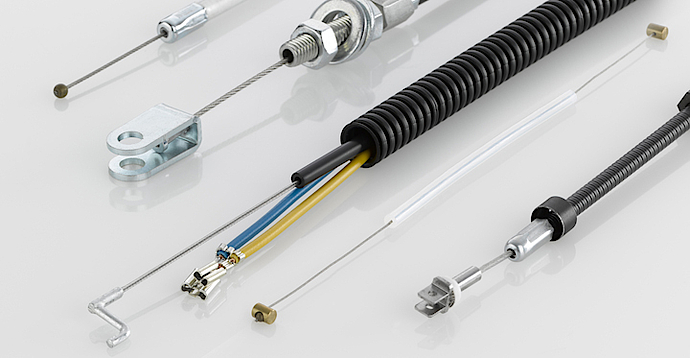

Ready to install wire cable and strands

Does your application require a ready-made rope? We manufacture your individual wire cable from different rope variants, rope end connections and components. For small quantities, we crimp terminals with variable quantities and very individual concept solutions. For large quantities, terminals are die-casted on our production lines in safe and automated processes.

Assembled ropes

e-rope conducting wire rope with terminals

Rope assembly

assembled wire ropes

Plastic coated steel wire ropes

A coated wire rope can consist of stainless steel wires or galvanized steel wires. If a wire rope is plastic coated, this increases the service life of the steel wire rope. A coated wire rope is used in environments with dust and dirt. A plastic coated wire rope is also often chosen for visual reasons. We offer a wide range of coated wire ropes as standard. Our steel wire ropes can also be individually plastic-coated and configured.

Do you need a special wire rope solution?

Customised wire rope solutions

Request advice now >
