Carl Stahl TECHNOCABLES

Cable gripper - Y suspension gripper

Cable gripper for y suspension
Series 1018

for rope Ø 1.0-1.8 mm
side exit out with slit and knurled screw
material: brass
surface: nickel-plated

diameter: 10 mm
length: 37 mm
slot width: 2.3 mm

Art. No.:
Without locknut: SL000163
Cable gripper for y suspension
Series 1018

for rope Ø 1.0-1.8 mm
side exit out with slit and knurled screw
material: brass
surface: nickel-plated

diameter: 10 mm
length: 37 mm
slot width: 2.3 mm

Art. No.:
Without locknut: SL000163

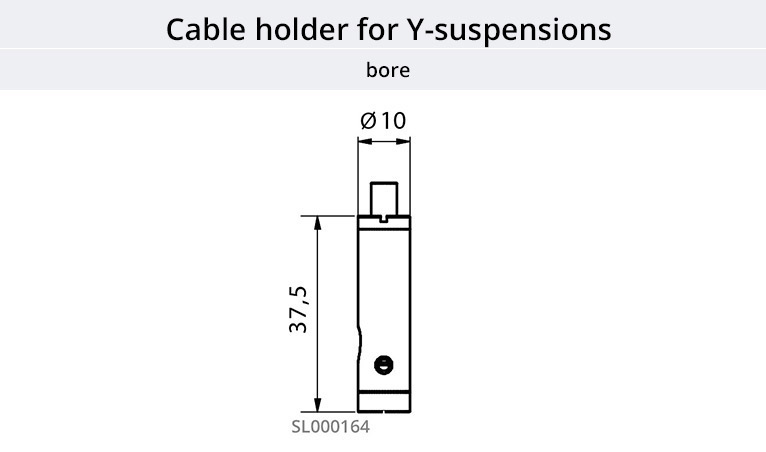

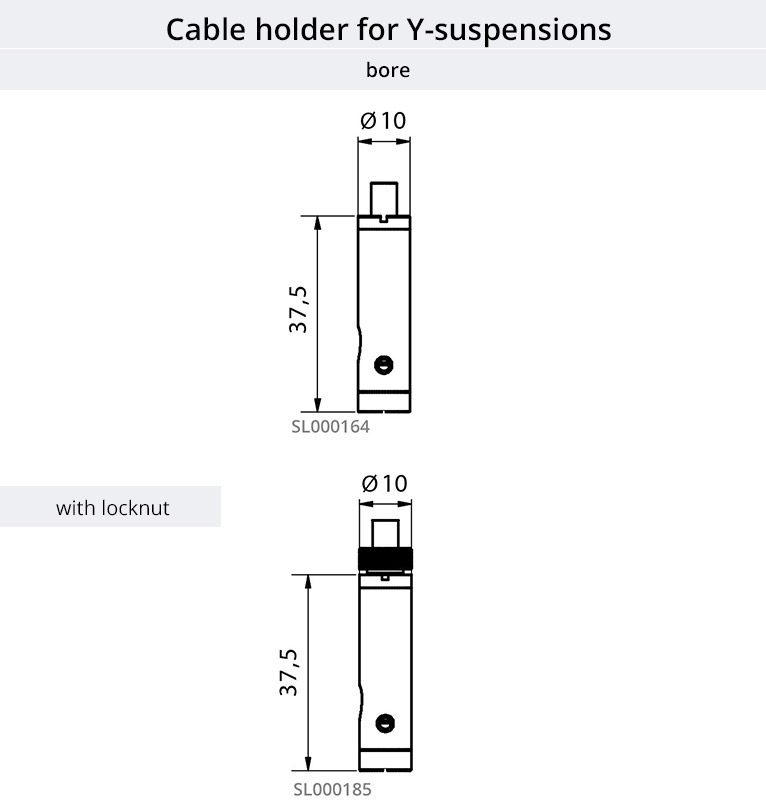

Cable gripper for y suspension
Series 1018

for rope Ø 1.0-1.8 mm
side exit with bore and knurled screw
material: brass
surface: nickel-plated

diameter: 10 mm
length: 37 mm
bore diameter: 2.2 mm

Art. No.:
Without locknut: SL000164
Cable gripper for y suspension
Series 1018

for rope Ø 1.0-1.8 mm
side exit with bore and knurled screw
material: brass
surface: nickel-plated

diameter: 10 mm
length: 37 mm
bore diameter: 2.2 mm

Art. No.:
Without locknut: SL000164
