Cable gripper - thread gripper

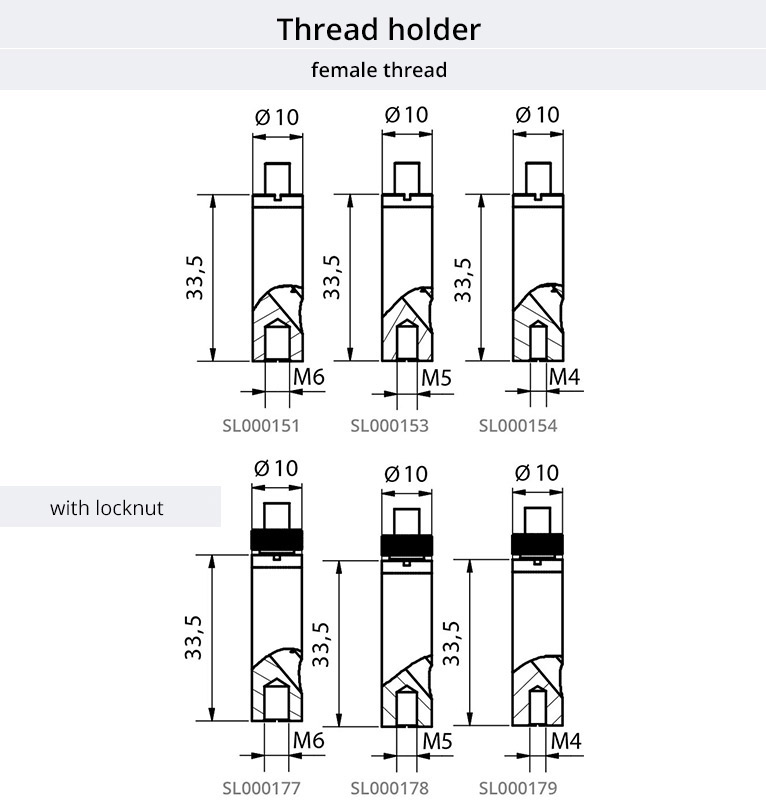

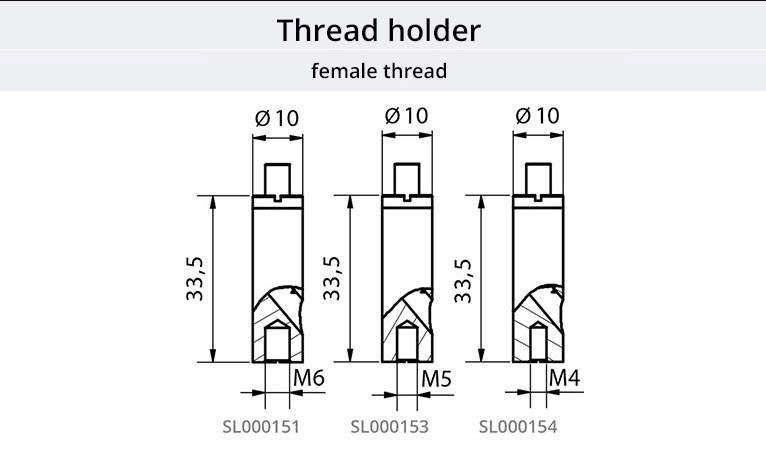

for rope Ø 1.0-1.8 mm
side exit
material: brass
surface: nickel-plated

diameter: 10 mm
length: 33 mm
thread length: 7 mm

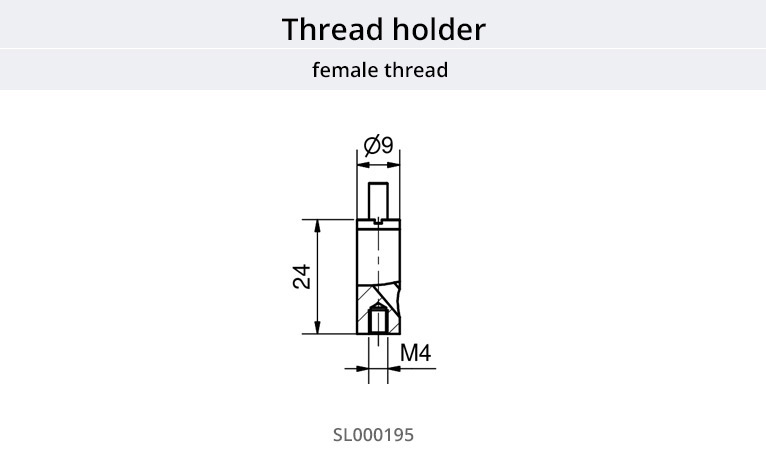

for rope Ø 1.0-1.2 mm
side exit
material: brass
surface: nickel-plated

diameter: 9 mm
length: 24 mm
thread length: 5 mm

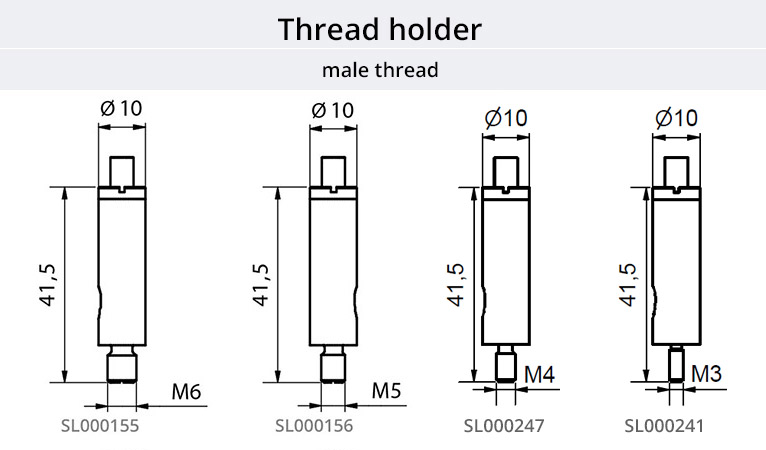

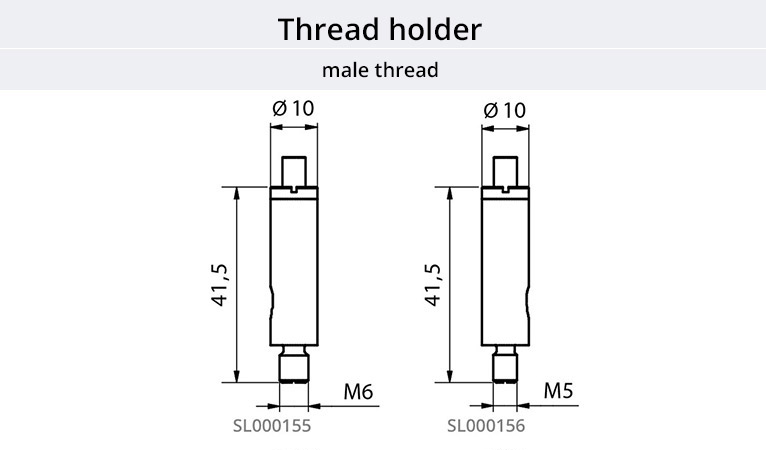

for rope Ø 1.0-1.8 mm
side exit
material: brass
surface: nickel-plated

diameter: 10 mm
length: 41 mm
thread length: 8 mm

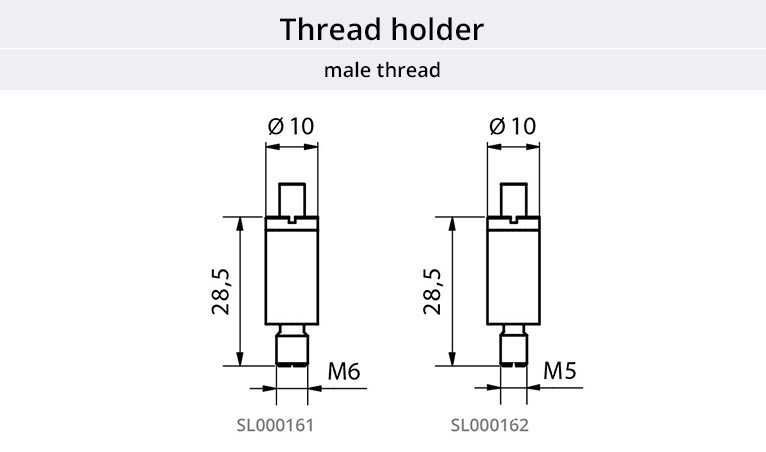

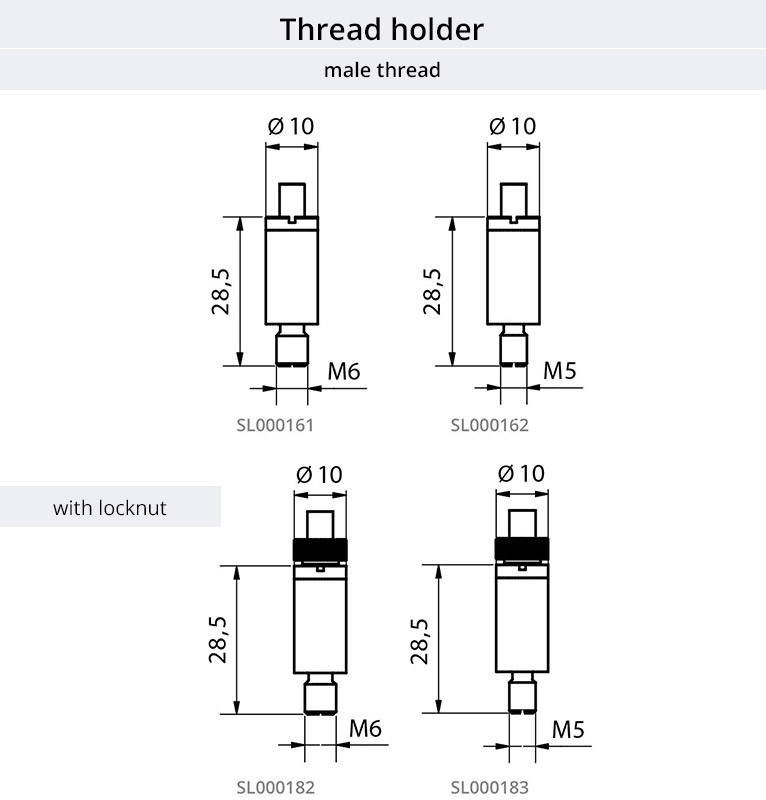

for rope Ø 1.0-1.8 mm
bottom exit
material: brass
surface: nickel-plated

diameter: 10 mm
length: 28 mm
thread length: 8 mm

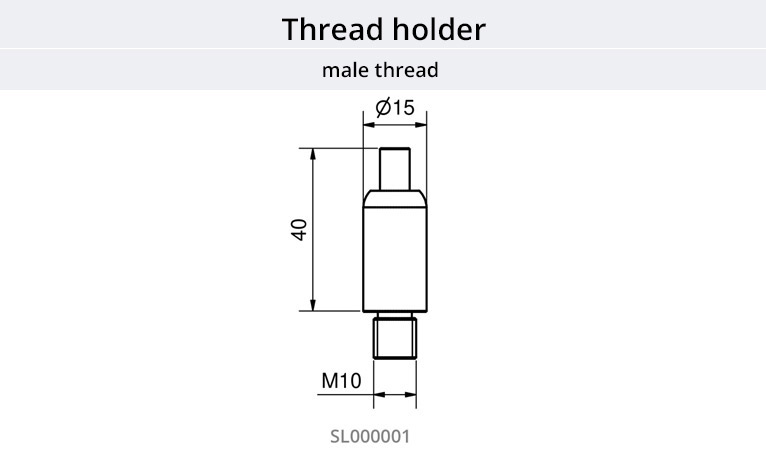

for rope Ø 2.0-3.0 mm
bottom exit
material: brass
surface: nickel-plated

diameter: 15 mm
length: 40 mm
thread length: 11 mm

- on request -

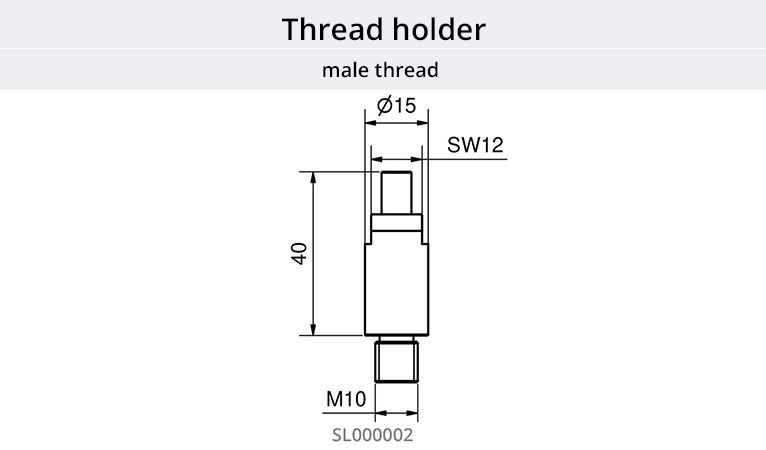

for rope Ø 2.0-3.0 mm
bottom exit
material: brass
surface: nickel-plated

diameter: 15 mm
length: 40 mm
thread length: 11 mm
key width: 12

- on request -

for rope Ø 1.0-1.8 mm
bottom exit
material: brass
surface: nickel-plated

collar diameter: 14 mm
length: 18 mm

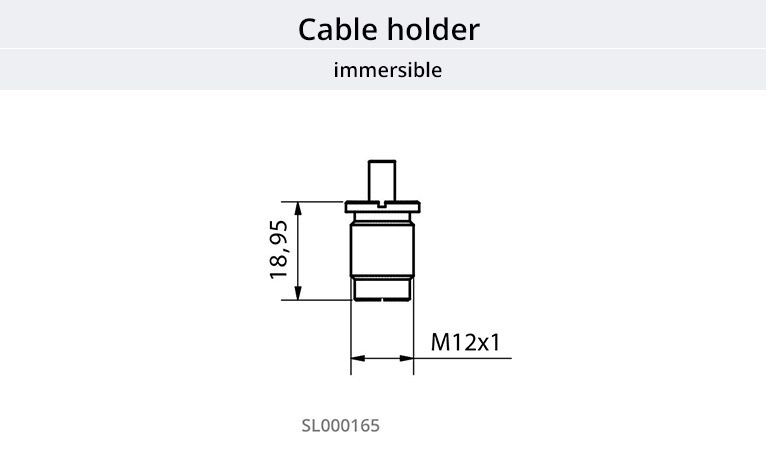

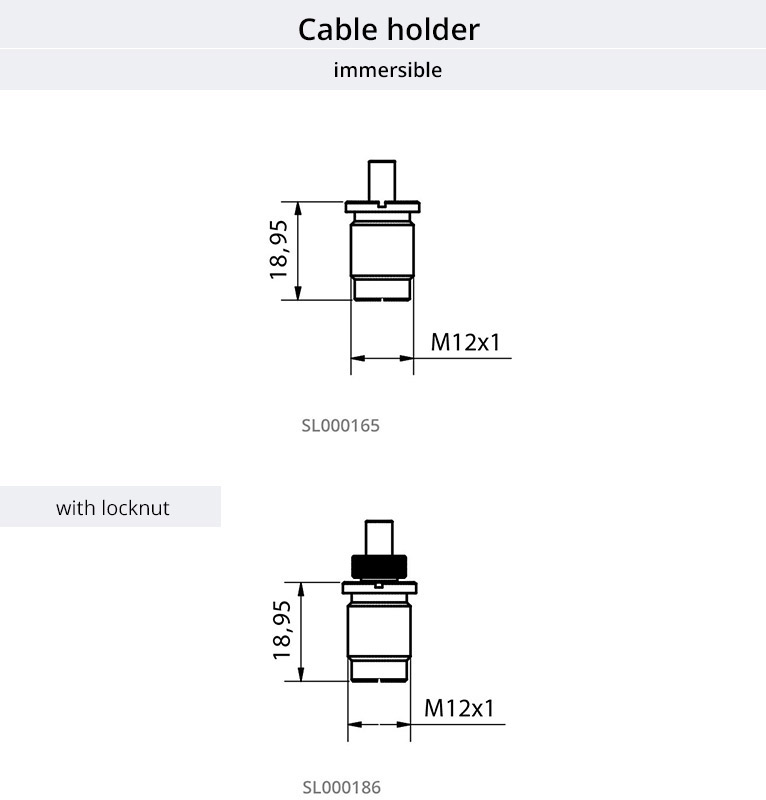

for rope Ø 1.0-1.2 mm
bottom exit
material: brass
surface: nickel-plated

collar diameter: 12 mm
length: 12 mm

with locknut

- on request -

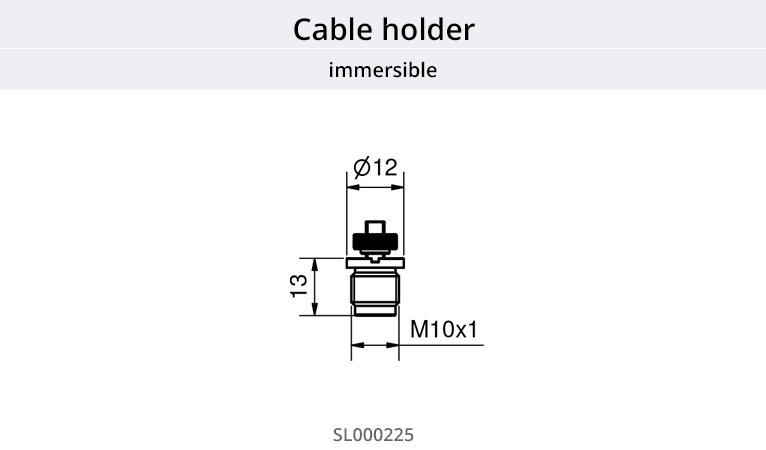

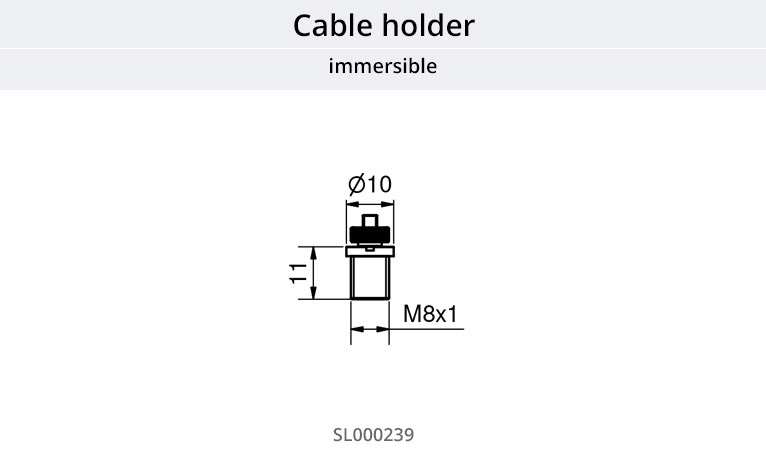

for rope Ø 1.0-1.2 mm
bottom exit
material: brass
surface: nickel-plated

collar diameter: 10 mm
length: 11 mm

with locknut
