Cable gripper - swivel head

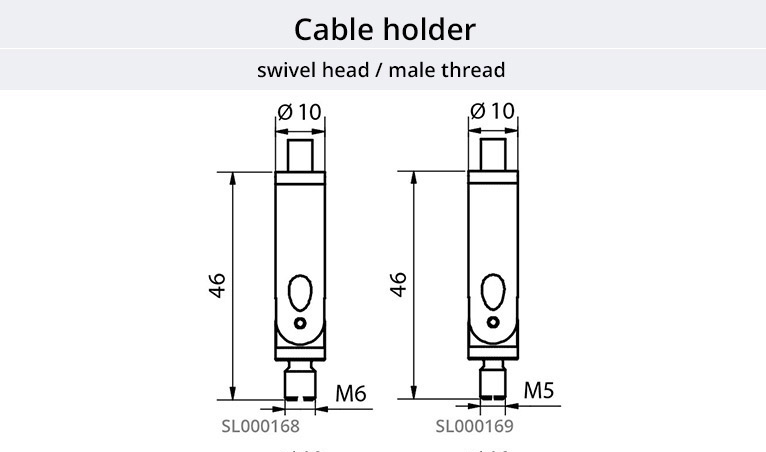

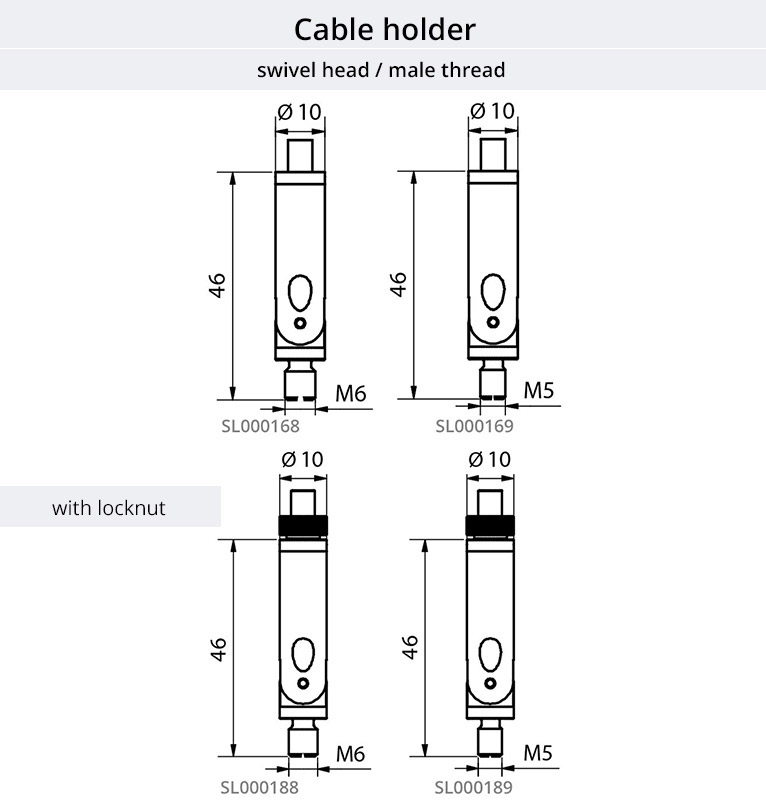

Swivel head male thread
Series 1018

for rope Ø 1.0-1.8 mm
side exit
swiverling about 180°
material: brass
surface: nickel-plated

diameter: 10 mm
length: 46 mm
thread length: 8 mm

Art. No.:

M6: SL000168

M5: SL000169

Swivel head male thread
Series 1018

for rope Ø 1.0-1.8 mm
side exit
swiverling about 180°
material: brass
surface: nickel-plated

diameter: 10 mm
length: 46 mm
thread length: 8 mm

Art. No.:

M6: SL000168

M5: SL000169

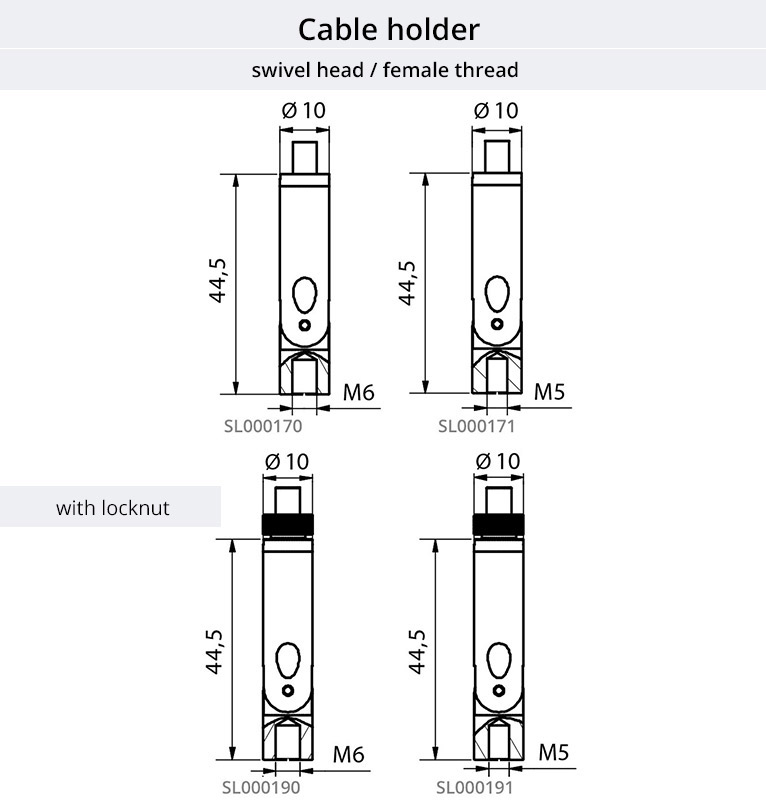

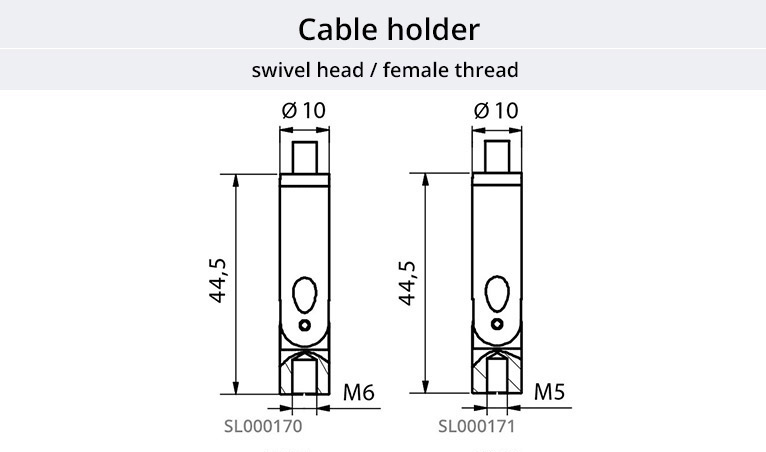

Swivel head female thread
Series 1018

for rope Ø 1.0-1.8 mm
side exit
swiverling about 180°
material: brass
surface: nickel-plated

diameter: 10 mm
length: 44,5 mm
thread length: 7 mm

Art. No.:

M6: SL000170

M5: SL000171

Swivel head female thread
Series 1018

for rope Ø 1.0-1.8 mm
side exit
swiverling about 180°
material: brass
surface: nickel-plated

diameter: 10 mm
length: 44,5 mm
thread length: 7 mm

Art. No.:

M6: SL000170

M5: SL000171

Swivel head male thread
Series 1012

for rope-Ø 1.0-1.2 mm
side exit
swiverling about 180°
material: brass
surface: nickel-plated

diameter: 9 mm
length: 36,5 mm
thread length: 8 mm

Art. No.: SL000224

Swivel head male thread
Series 1012

for rope-Ø 1.0-1.2 mm
side exit
swiverling about 180°
material: brass
surface: nickel-plated

diameter: 9 mm
length: 36,5 mm
thread length: 8 mm

Art. No.: SL000224
