material: polished brass
surface: nickel-plated
length: 18 mm
collar diameter: 16 mm
thread in the collar: M6
outer diameter: 12 mm
female thread: M10x1
thread length: 12 mm
Suitable wire rope attachment: SL000160
material: polished brass
surface: nickel-plated
length: 18 mm
collar diameter: 16 mm
thread in the collar: M6
outer diameter: 12 mm
female thread: M10x1
thread length: 12 mm
Suitable wire rope attachment: SL000160
material: polished brass
surface: nickel-plated
length: 29 mm
collar diameter: 18 mm
hole in the collar: Ø5
outer diameter: 14 mm
female thread: M12x1
thread length: 20 mm
slot width: 2.5 mm
Suitable for thread gripper: SL000165
material: polished brass
surface: nickel-plated
length: 29 mm
collar diameter: 18 mm
hole in the collar: Ø5
outer diameter: 14 mm
female thread: M12x1
thread length: 20 mm
slot width: 2.5 mm
Suitable for thread gripper: SL000165

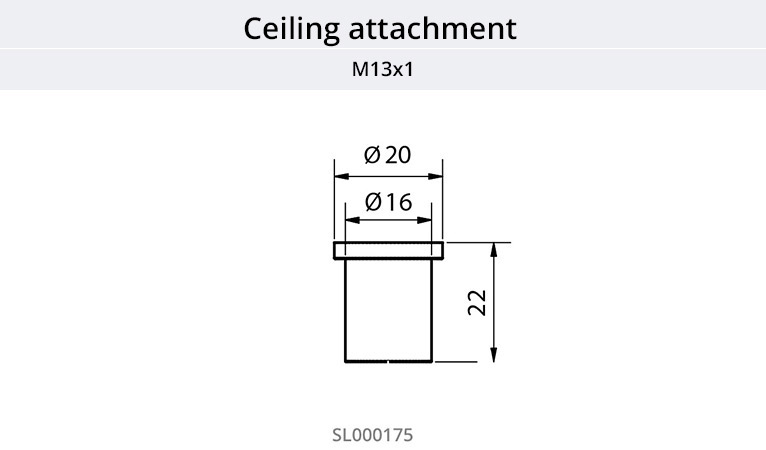

material: polished brass
surface: nickel-plated
length: 22 mm
collar diameter: 20 mm
hole in the collar: Ø7
outer diameter: 16 mm
female thread: M13x1
thread length: 15 mm
Suitable wire rope attachment: SL000174
Suitable wire rope attachment: SL000176
material: polished brass
surface: nickel-plated
length: 22 mm
collar diameter: 20 mm
hole in the collar: Ø7
outer diameter: 16 mm
female thread: M13x1
thread length: 15 mm
Suitable wire rope attachment: SL000174
Suitable wire rope attachment: SL000176

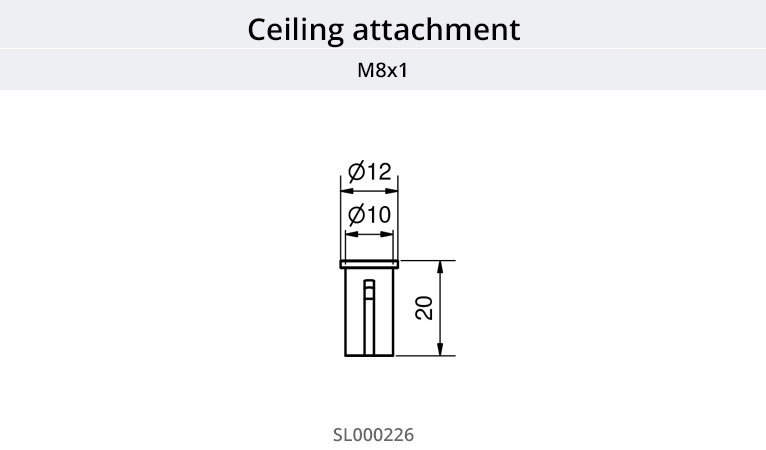

material: polished brass
surface: nickel-plated
length: 20 mm
collar diameter: 12 mm
thread in the collar: M6
outer diameter: 10 mm
female thread: M8x1
thread length: 12 mm
slot width: 2 mm
Suitable for thread gripper: SL000239
material: polished brass
surface: nickel-plated
length: 20 mm
collar diameter: 12 mm
thread in the collar: M6
outer diameter: 10 mm
female thread: M8x1
thread length: 12 mm
slot width: 2 mm
Suitable for thread gripper: SL000239

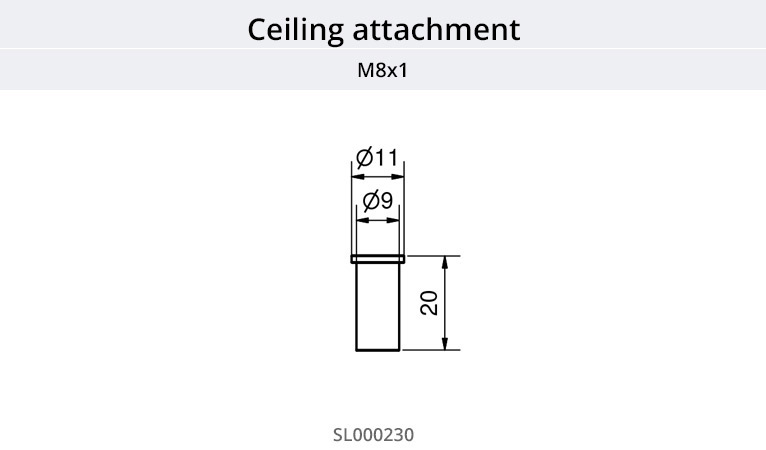

material: polished brass
surface: nickel-plated
length: 20 mm
collar diameter: 11 mm
thread in the collar: M6
outer diameter: 9 mm
female thread: M8x1
thread length: 12 mm
Suitable wire rope attachment: SL000231
material: polished brass
surface: nickel-plated
length: 20 mm
collar diameter: 11 mm
thread in the collar: M6
outer diameter: 9 mm
female thread: M8x1
thread length: 12 mm
Suitable wire rope attachment: SL000231
A ceiling suspension is used to mount an objects such as a lamp or a sign to the ceiling with a wire rope. The ceiling attachment is mounted directly to the ceiling for this purpose. The wire rope holder or gripper is screwed into a ceiling hanger with a steel cable / rope to attach it to the ceiling. We create complete customized ceiling hanging kits.
Wire rope ceiling suspension sets
