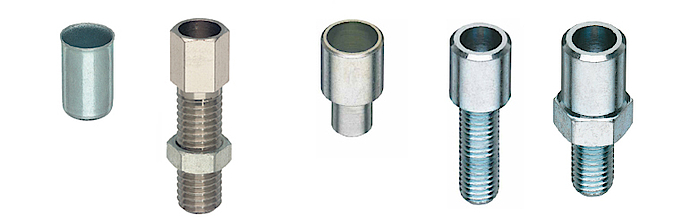

End sleeves are pressed directly onto the ends of the spiral sleeves and enclose them. They can be assembled individually or in combination with adjusting screws. Adjusting screws are used to fix the Bowden cable and can be adjusted in their position. To secure the set position, the adjustment screws are provided with one or two nuts.

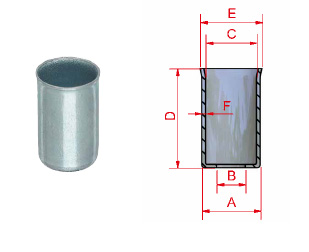

Galvanized and chrome plated bowden cable end caps are used as end fittings for bowden cables.
| ø A mm | ø B mm | ø C mm | D mm | ø E mm | F mm | Item No. old | Item No. new |
|---|---|---|---|---|---|---|---|
| 4,8 | 2,0 | 4,1 | 11,0 | 5,2 | 0,3 | BH411120 | EN000001 |
| 5,7 | 2,5 | 5,0 | 12,0 | 6,1 | 0,3 | BH501225 | EN000002 |
| 6,2 | 3,0 | 5,5 | 12,0 | 6,6 | 0,3 | BH551230 | EN000003 |
| 6,9 | 3,5 | 6,2 | 12,0 | 7,5 | 0,4 | BH621235 | EN000004 |
| 7,7 | 4,0 | 6,9 | 13,0 | 8,1 | 0,4 | BH691340 | EN000005 |
| 8,9 | 5,0 | 8,0 | 15,0 | 9,3 | 0,4 | BH801550 | EN000006 |
| 10,6 | 6,0 | 9,5 | 15,0 | 11,0 | 0,5 | BH951560 | EN000007 |

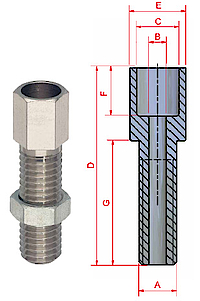

Our adjustment screws with hexagon, made of nickel-plated brass, are used as fastening and adjustment elements for Bowden cables.
| A mm | ø B mm | ø C mm | D mm | SW E mm | F mm | G mm | Item No. old | Item No. new |
|---|---|---|---|---|---|---|---|---|
| M5 | 2,5 | 7,0 | 34 | 8 | 8,5 | 24 | VER53408 | SA000023 |
| M6 | 3,0 | 7,0 | 34 | 8 | 8,5 | 24 | VER63408 | SA000040 |
| M6 | 2,8 | 6,8 | 32 | 9 | 8,0 | 20 | VER63209 | SA000025 |
| M6 | 2,5 | 7,0 | 53 | 10 | 6,0 | 45 | VER65310 | SA000027 |
| M6 | 3,0 | 7,0 | 40 | 8 | 8,5 | 30 | VER64008 | SA000026 |
| M8 | 4,0 | 7,3 | 34 | 9 | 8,5 | 24 | VER83409 | SA000041 |
| M8 | 4,0 | 7,3 | 40 | 9 | 8,5 | 30 | VER84009 | SA000028 |
| M8 | 4,0 | 8,5 | 55 | 11 | 8,0 | 45 | VER85511 | SA000029 |
Hose sockets made of nickel-plated brass, galvanized steel or stainless steel are available with neck, thread and thread with hexagon. They are pressed directly with the spirals.
Extension hose sockets in galvanized steel, stainless steel and nickel-plated brass are used as end fittings for Bowden cables.
| ø A mm | ø B mm | ø C mm | D mm | ø E mm | F mm | G mm | Item No. old | Item No. new |
|---|---|---|---|---|---|---|---|---|
| 4,0 | 2,5 | 5,1 | 9,5 | 7,0 | 4,5 | 3,5 | - | SA000067 |
| 5,8 | 2,5 | 5,1 | 23,0 | 7,2 | 12,0 | 10,0 | - | SA000276 |
| 6,0 | 3,0 | 5,5 | 20,0 | 8,0 | 9,0 | 8,0 | S0705340 | SA000003 |
| 5,5 | 3,0 | 8,0 | 20,0 | 11,5 | 6,0 | 9,0 | S2507330 | SA000019 |
| 14,2 | 4,5 | 11,0 | 23,0 | 16,0 | 12,0 | 8,0 | S070028A | SA000001 |
The threaded hose sockets in the versions nickel-plated brass and galvanized steel are pressed directly onto the spiral sleeves and are used as fastening elements.
| ø A mm | ø B mm | ø C mm | D mm | ø E mm | F mm | G mm | Item No. old | Item No. new |
|---|---|---|---|---|---|---|---|---|
| M6 | 3,0 | 6,5 | 22,0 | 8,0 | 10,0 | 10,0 | S100367B | SA000032 |
| M6 | 3,0 | 7,0 | 37,0 | 10,0 | 15,0 | 20,0 | - | SA000253 |
| M6 | 3,0 | 7,0 | 39,0 | 9,3 | 8,5 | 29,0 | S100783 | SA000034 |
| M8 | 4,0 | 11,0 | 50,0 | 15,0 | 15,0 | 30,0 | S08057100 | SA000014 |
| M10 | 4,0 | 11,0 | 50,0 | 15,0 | 15,0 | 30,0 | S0804250 | SA000012 |
Our threaded hose sockets with hexagon are available in nickel-plated brass and galvanized steel. They are used as fastening and adjustment elements and have a hexagon as a counterhold.
| ø A mm | ø B mm | ø C mm | D mm | ø E mm | F mm | G mm | SW H | Item No. old | Item No. new |
|---|---|---|---|---|---|---|---|---|---|
| M8 | 4,0 | 7,0 | 36,0 | 10,0 | 9,0 | 22,0 | 13 | S1005300 | SA000033 |
| M16 | 6,0 | 15,3 | 60,0 | 20,0 | 31,0 | 25,0 | 24 | S0810870 | SA000016 |
