Manufacturer and assembly of customised miniature steel cables - stainless steel, galvanised steel, tungsten
Are you looking for a tailor-made steel cable solution that exactly meets the specific requirements of your project? Carl Stahl Technocables is your partner for custom made wire ropes and precise rope solutions in the field of small diameter ropes / miniature cables.
Our passion: individual rope solutions that challenge us and require tailor-made precision.
Thanks to our extensive experience and technical expertise, we are able to develop miniature rope solutions using wires and strands with diameters ranging from 0.09 to 8.00 mm. As a custom manufacturer of stainless steel, galvanised steel and tungsten cables, our wire ropes are used in a wide range of industries - medical technology, mechanical engineering, automation, robotics, furniture construction, suspension and lighting, automotive and many more. Our wire rope solutions are tailored to the customer's application and are characterised by high resistance, quality and durability.
Would you like advice on your specific project?

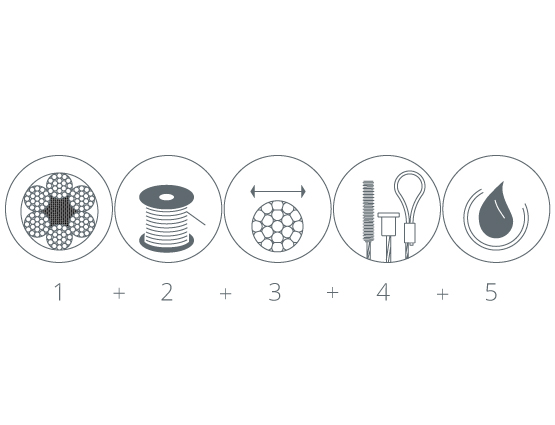

Selection criteria for custom steel wire rope and tailor-made steel cable solutions
Various factors need to be taken into account when developing your customised rope solution:
External influences: What external influences such as temperature, moisture or dirt affect the rope?
Breaking load and forces: What forces does the rope or strand have to withstand?
Surface treatment: Are special treatments such as cleaning, hammering or greasing required to achieve optimum performance?
Fabrication and terminations: What terminations are required? Are there any special requirements such as a cage loop or customised terminations?

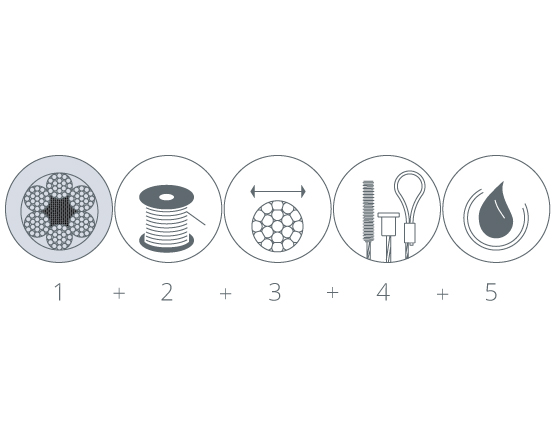

1. rope construction and structure
Components:
The central part of the rope, the rope core, consists of either a steel core or fiber cores. The strands are the outer strands that surround the rope around the core. They are made up of twisted wire bundles that transmit the tensile force of the rope.
Influencing factors:
Whether the rope is designed to be used for tensile forces, bending forces or lifting applications influences the construction.
The rope construction determines whether the breaking force and tensile strength correspond to the load requirement (more strands = higher strength).
The number of wires per strand and the direction of lay (right or left) influence the flexibility and pliability of the rope.

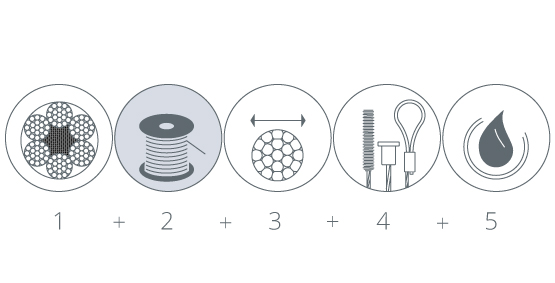

2. selection of the rope material
Components:
Metal wires made of steel, stainless steel, galvanised steel, copper or special alloys such as Monel, Inconel, titanium, Nitinol, etc.
Sheathing made of nylon, FEP, PTFE or other plastics.
Influencing factors:
Ropes used in harsh environments such as seawater or chemicals require materials with high corrosion resistance such as stainless steel or special alloys to withstand the environmental conditions.
At extreme temperatures, materials such as Inconel or tungsten are more suitable.
To increase the service life, coated ropes or hammered surfaces can be selected to increase abrasion resistance.

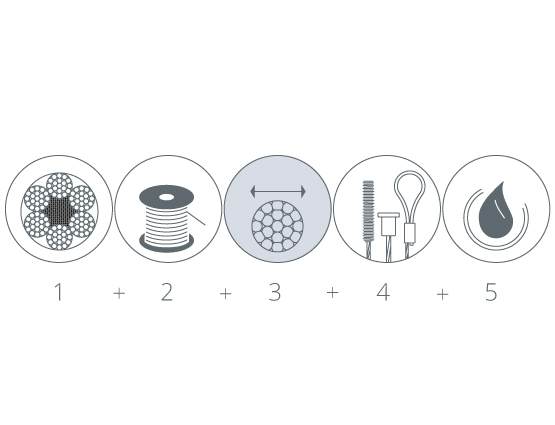

3. diameter and rope cross-section
Components:
The rope diameter (between 0.09 mm and 8.00 mm for Carl Stahl Technocables) influences the load capacity and flexibility.
Influencing factors:
A larger diameter increases the breaking strength, but reduces the flexibility.
Tight installation space specifications or special machine designs may require a smaller diameter.
A larger rope also has a higher weight, which can be a limiting factor in certain applications.

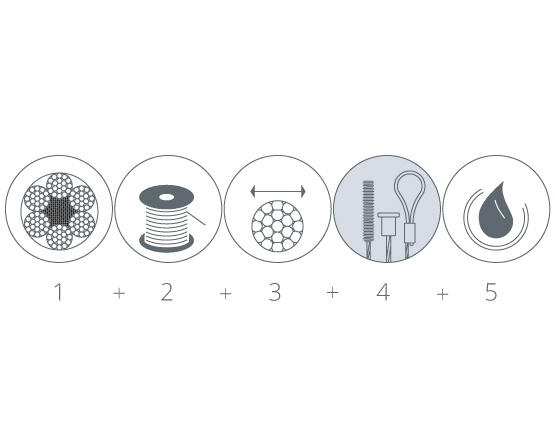

4. end connections (terminals)
Components:
Clamps, eyelets, hooks, threads or die-cast end connections.
Influencing factors:
Depending on the application, a specific end connection can be selected to integrate the rope safely and functionally into the system.
Brass, steel or stainless steel end connections must be selected to suit the environment (corrosion, load).
Some end connections facilitate installation or subsequent maintenance.

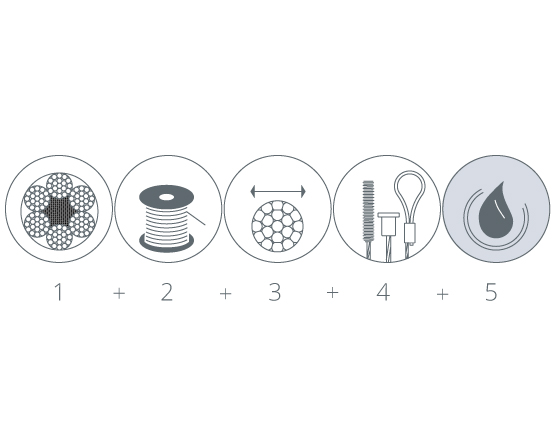

5. surface treatment and finishing
Components:
Coatings made of nylon, FEP, PTFE or other plastics, hammered or compacted ropes to increase abrasion resistance.
Greased or cleaned ropes to improve the sliding properties or corrosion resistance.
Influencing factors:
In applications with high friction, a swaged or coated rope surface can significantly increase the service life.
In environments with high humidity or salt water, a sheath or stainless steel rope can protect against corrosion.
Cleaned ropes are used wherever there are high demands on cleanliness, minimal residual contamination and deep cleanliness, such as in medical technology.

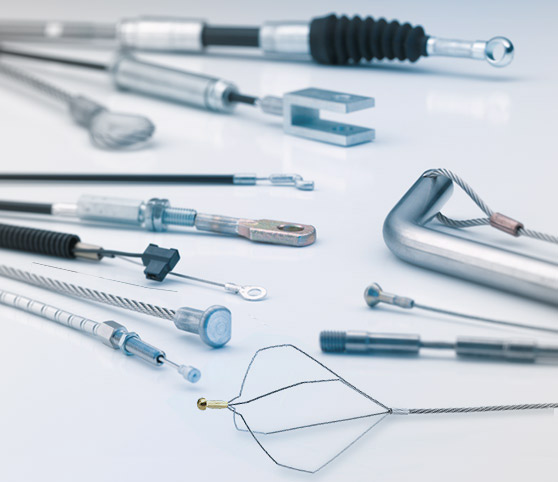

What we offer: Production of custom miniature mechanical ropes and strands
Rope production: customised steel ropes
Our strength lies in the manufacture of the finest mechanical ropes and strands that are precisely customised to the desired requirements. In our state-of-the-art rope manufacturing facility, we develop ropes with steel or fibre cores and optimise the construction and lay direction for maximum performance. We not only work with traditional materials such as stainless steel and galvanised steel, but also offer steel wire ropes made from highly specialised materials such as copper, tungsten, nitinol, brass, titanium, tantalum, monel, inconel and hastelloy. In addition, our ropes can be coated with plastics, compacted, hammered, cleaned or greased.
Rope manufacture: precise, tailor-made solutions
We supply our products both by the metre and assembled - with a wide range of end connections such as terminals made of brass, steel, stainless steel or die-cast zinc, which are available from stock or manufactured to individual requirements.
Our focus: High-quality, long-term reliable rope solutions
High quality
We secure our market presence in the fine wire rope sector through precision and high quality standards. With our development expertise, many years of experience and the use of high-quality materials for our steel wire ropes, we create rope solutions at the highest level.
Long-term use
We attach great importance to ensuring that our rope solutions fulfil their function for as long as possible. In addition to our high quality standards, we rely on state-of-the-art production facilities that enable us to achieve a high level of manufacturing precision and therefore a long service life.
Reliable
Our ropes are manufactured under strict controls and fulfil the highest safety standards. Thanks to application-orientated product development and manufacturing precision, we achieve maximum accuracy and reliability even for complex projects.
What characterises our products and services
Properties that make our wire ropes, rope assemblies and services high-quality, reliable and customisable solutions for technically demanding applications:
What you can expect from us: End-to-end advice right through to the finished cable solution
Customer orientation is a top priority at Carl Stahl Technocables. We are with you every step of the way - from the initial concept to the selection of suitable materials and construction methods to the finished cable solution. Our team works closely with you to ensure that your requirements in terms of load-bearing capacity, external influences (such as ambient temperature or humidity) and special rope treatments (cleaned, hammered or greased) are precisely realised. After checking feasibility, we manufacture your product in the best possible quality and with maximum cost-effectiveness.
Our customers know who they can trust when it comes to customized rope solutions.
